A&B Process Systems 500 Gallon Jacketed Tank
![Used A&B Process Systems 500 Gallon Jacketed Tank](https://i.machineryhost.com/aa6b7ad9d68bf3443c35d23de844463b/ca54be579325de26c6984c0d4522d50a/large-used-a-and-b-process-systems-500-gallon-jacketed-tank.jpg)
A&B Process Systems 500 Gallon Jacketed Tank
Contact us for price
orCall 217.428.9800
Description

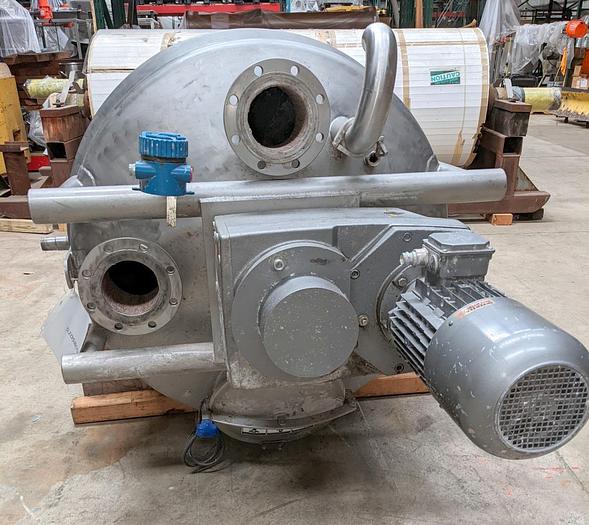

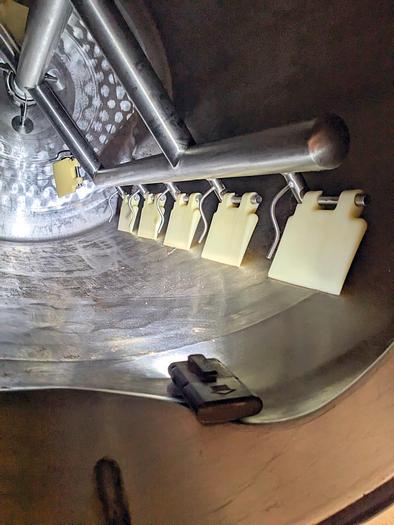

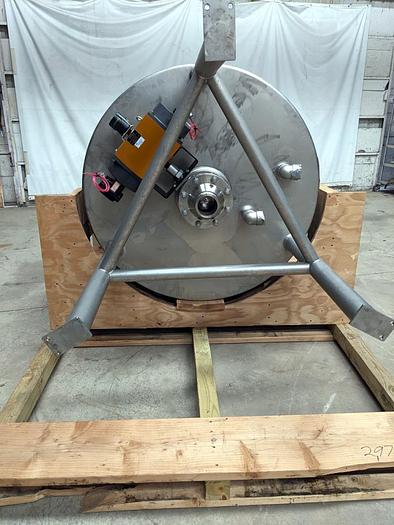

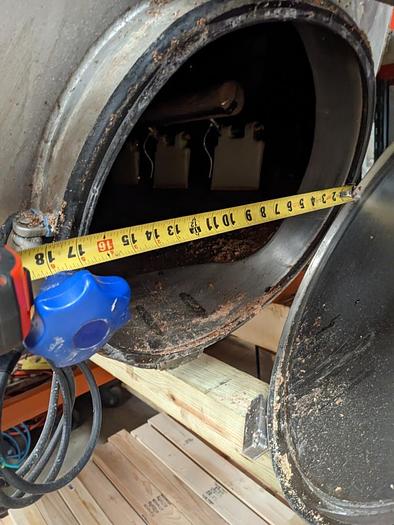

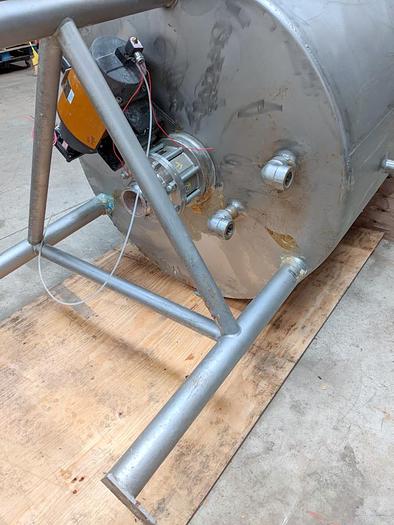

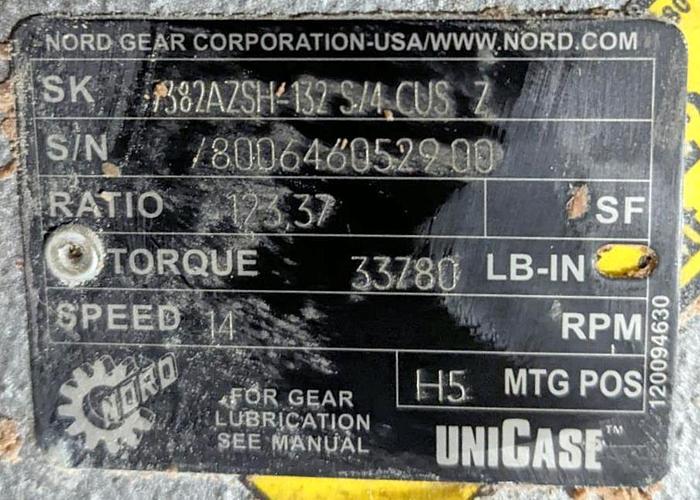

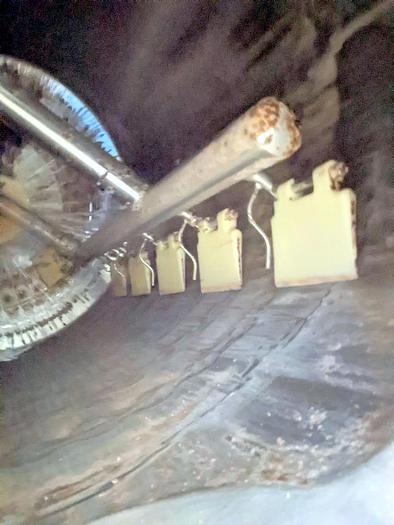

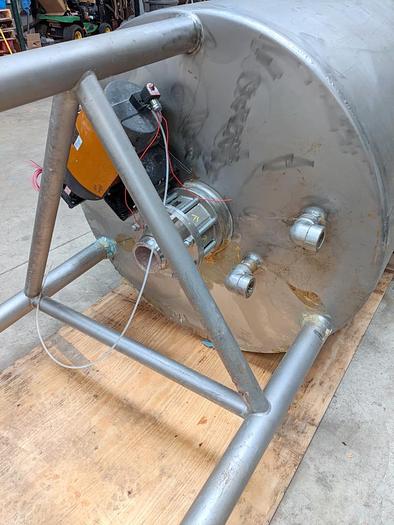

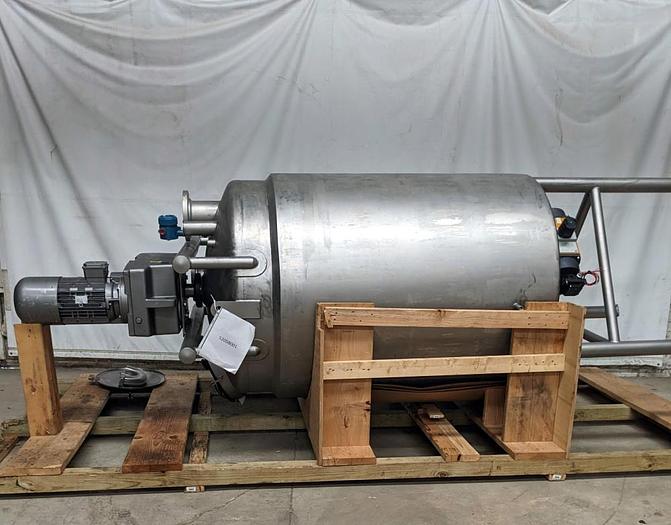

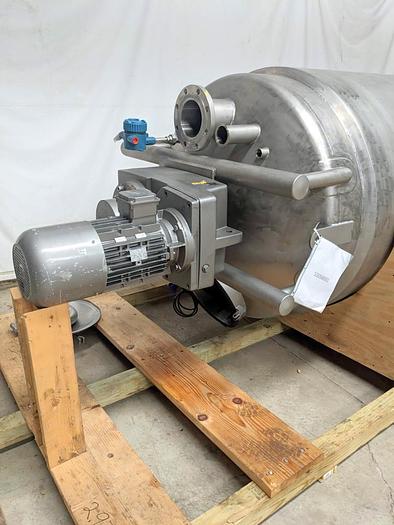

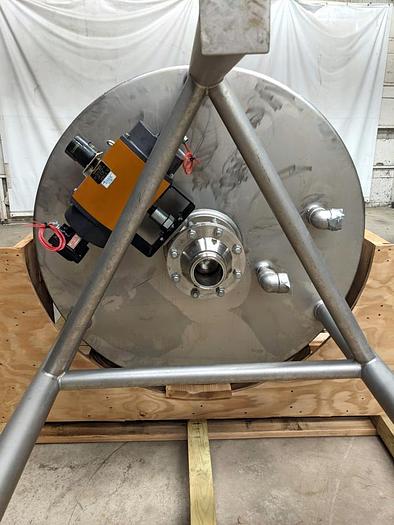

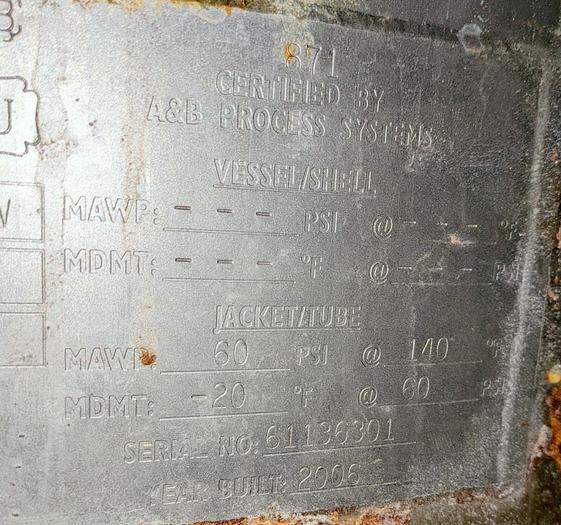

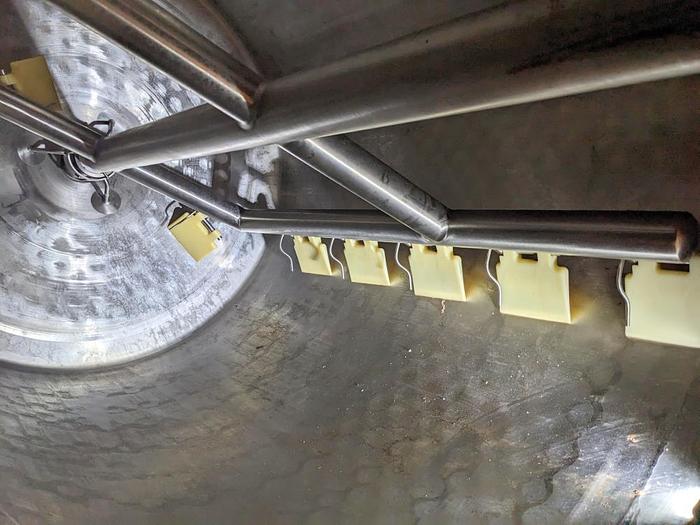

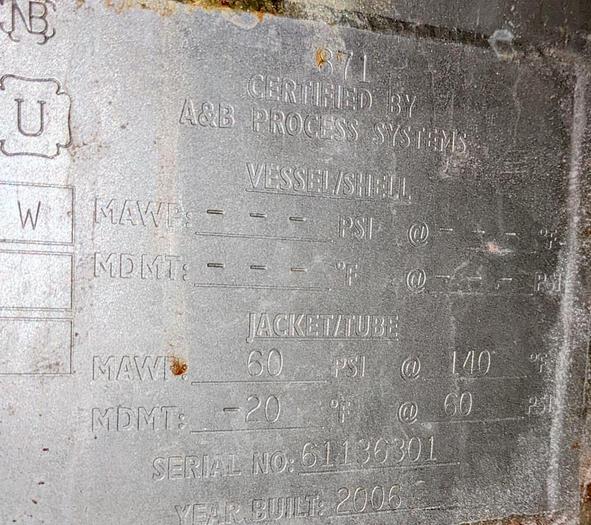

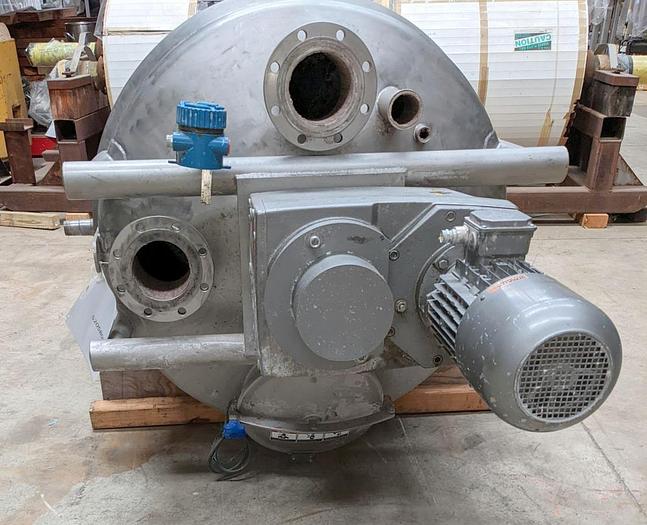

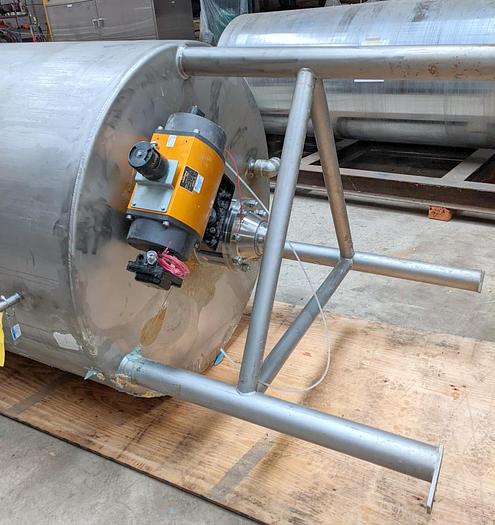

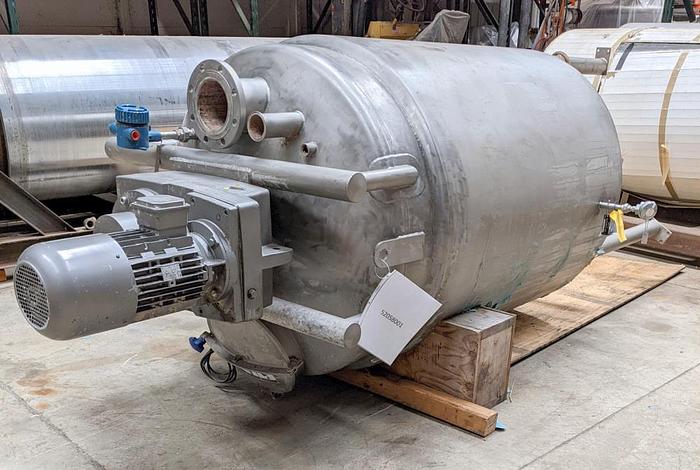

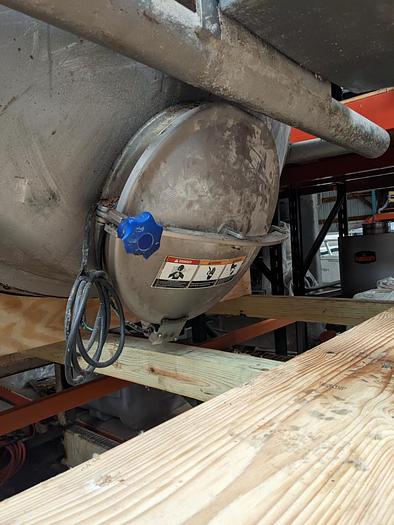

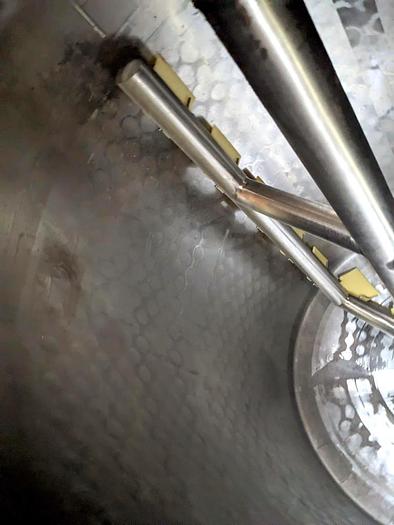

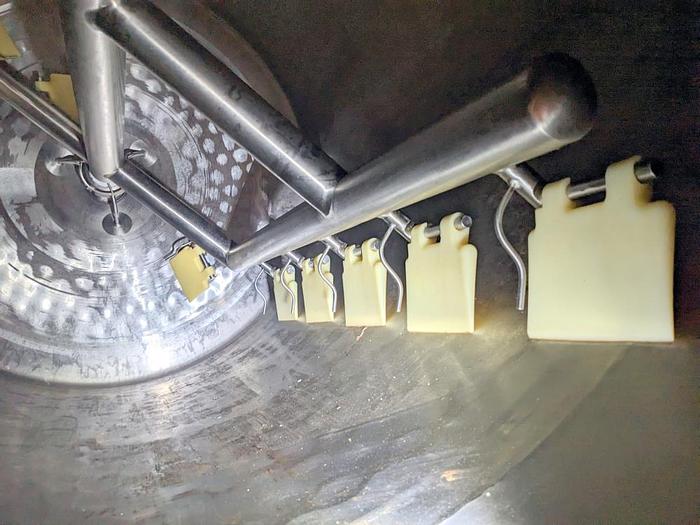

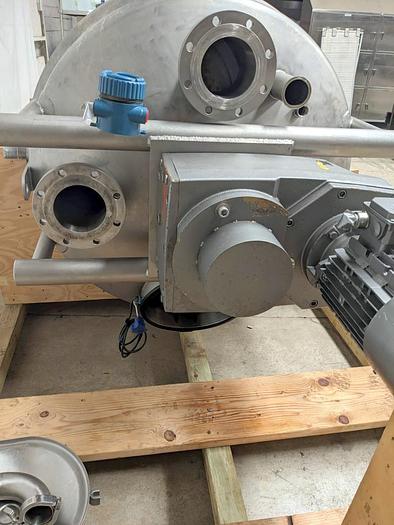

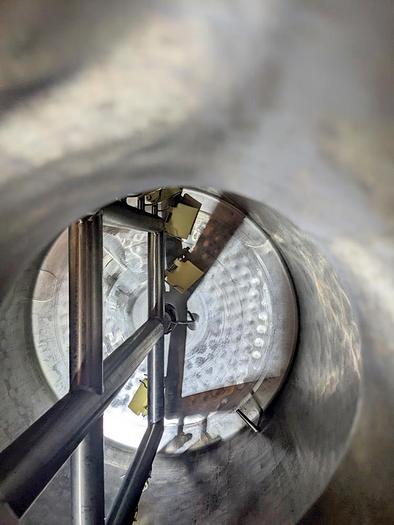

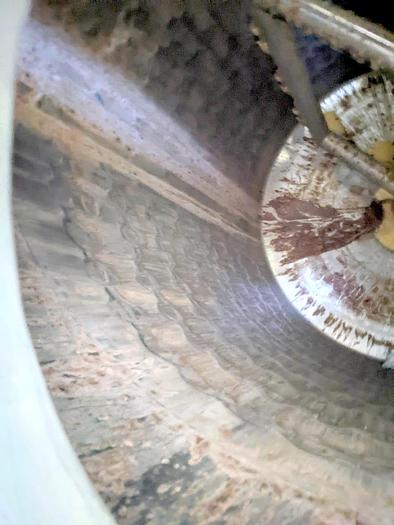

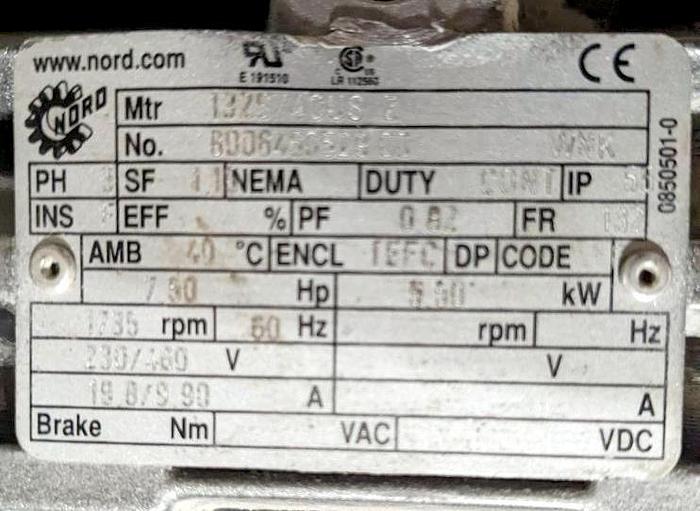

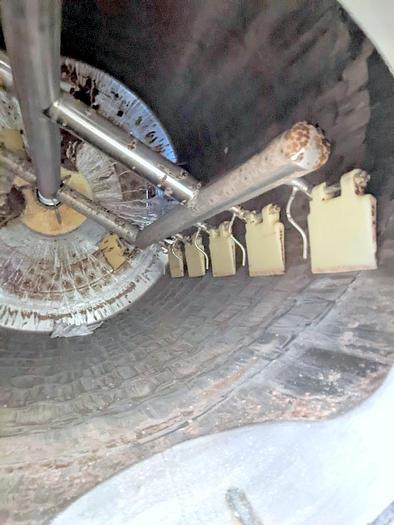

Used- A&B Process Systems 500 Gallon Jacketed Tank / Chocolate Melter, 304 Stainless Steel, Vertical. Approximate 48" diameter x 49" straight side. Dished top and bottom. Dimple 304 stainless steel jacket rated 60 psi at -20 to 140 degrees F. Single motion full scraper agitator, driven by nord 7.5hp, 3/60/230/460 volt, 1735 rpm thru nord gearbox 14 r.p.m. Openings top: (2) 6" diameter flanged inlets, 16" diameter manway with hinged cover. 4" Tri-clamp center bottom outlet with sanitary automatic ball valve, 28" discharge height. Mounted on (3) legs. National Board# 871, Serial# 61136301, Built 2006.
Specifications
Manufacturer | A&B Process Systems |
Model | 500 GALLON |
Condition | Used |
Serial Number | 61136301 |
Stock Number | 15079 |
